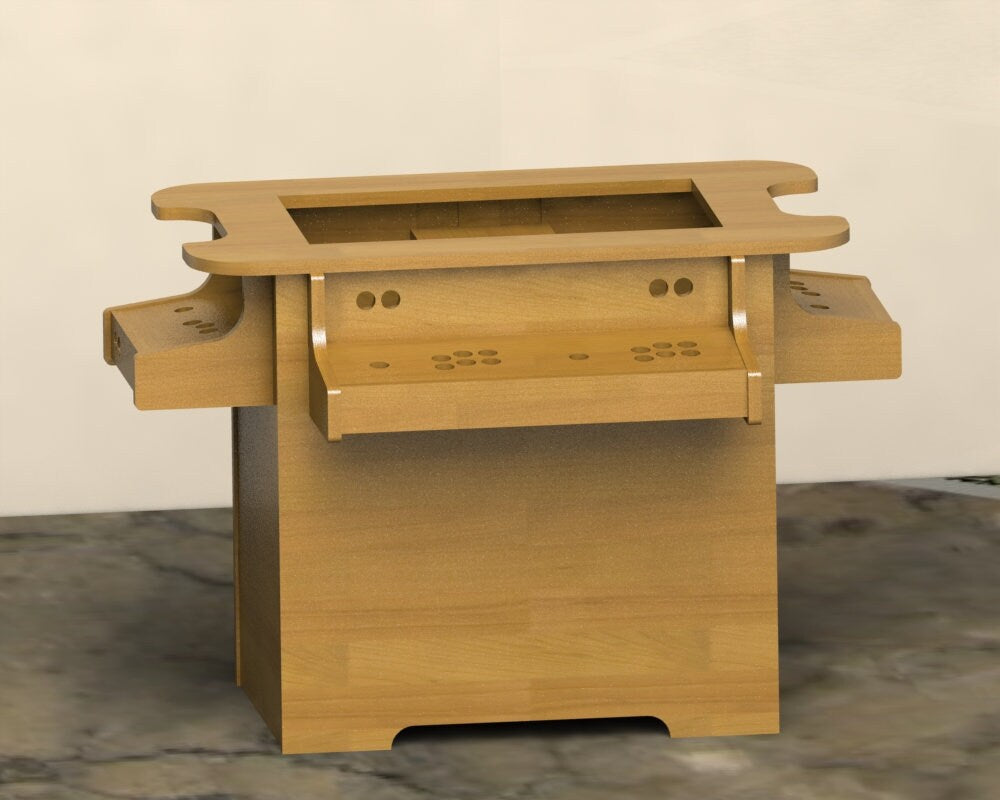

This listing is for a 4 player cocktail arcade machine plans.
You have the flexibility to play either vertical or horizontal games by using a games card like KOF (King of fighters) which allows you to switch between the two orientations.
The plans are for 16mm thickness material and allow for a monitor size of 23" maximum, but you can go smaller if you like. You can also have a door on one of the short sides to access the inside of the cabinet.
If you would like these plans for 3/4" material thickness, please message us and we will help you out.
Note: This is a digital file only, this is not a flat pack.
The files you will receive are dxf , for cutting with a CNC machine. We also include pdf files with measurements so you can make this cabinet manually with normal tools.
<head><meta charset="UTF-8" /></head>
PLEASE NOTE
All these diy plans are in the form or DXF formate which means that you will need a Cad program to open and view these plans if you are looking for PDF files then these are for you please do not purchase unless you inderstand these are for a CNC to cut and not to cut by hand
These plans are only for personal ise and cant be resold as there is a petant and copyright IP on these and always belong to Arcade Machines Australia
NO REFUND for wrong purchase as these are a digital product and cant be returned thanks for your understanding Happy Gaming
